DAB
Frequency:174MHz～240MHz (Band III)
Impedence :50 Ω
Amplification：20dB
VSWR:≤2.0:1

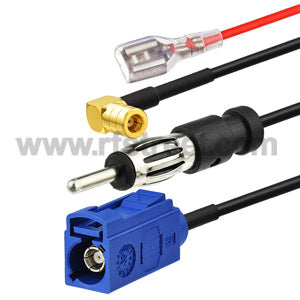

Connector :SMB Female
Cable:5m RG174
GPS
Frequency:1575.42MHz
Impedence :50 Ω
Amplification:28±3db
VSWR:≤1.5:1
Gain:32dbi
Connector: FAKRA“C” Female
Cable: 5m RG174
FM
Frequency: 87.5-108 MHz
Impedence : 50 Ω
Amplification:20dB
VSWR:≤2.5:1
Connector:DIN Male
Cable: 5m RG174
Voltage : 12v direct feed for both DAB an AM/FM
Current Consumption : 50mA

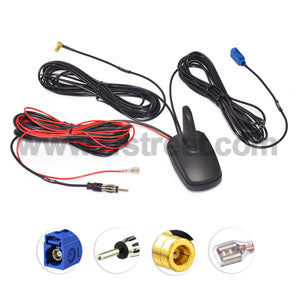

Package included:5m DAB/FM Car Aerial GPS
Advantages:
Very neat and stylish.

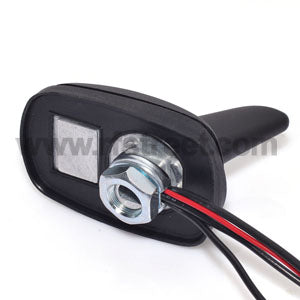

Roof mount DAB car radio aerial.
No need to unscrew mast for carwash, etc.
Can also be fitted to wing, boot lid etc. (at slight expense of performance)
Vandal resistant.
Amplified
Listing Suitable for the following DAB radios：
Alpine All in-car DAB except Ezi-DAB
Beat ALL in-car DAB except 400 & 485
Blaupunkt All in-car DAB
Caliber Caliber ALL in-car DAB except PMT-700D
C-KO All in-car DAB
Clarion Clarion ALL in-car DAB except DAB302E
Clarity CCE203-DAB
Grundig All in-car DAB
JVC All in- car DAB
Kenwood All in- car DAB
Kinetic All in-Car DAB
pioneer All in-car DAB except GEX-P900DAB
philips CEM.....series
pure Highway H240Di H260D
Sonichi SB50-DAB
Sony All in-car DAB
Cautions:
DAB / FM / GPS only.
FM reception good, but not up to a top quality, full rod aerial.
Not designed for AM reception; will nevertheless receive strong MW signals.
Mounting surface must be flat to within 1.5mm.
Must not be mounted on a panel whose underside is exposed to the elements.
Max panel thickness: 2.5mm
