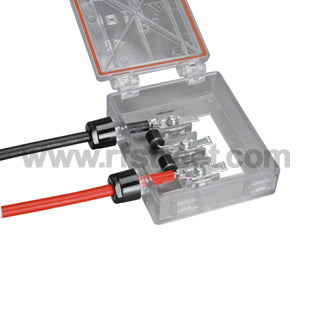

This Solar Junction Box provide a safe, efficient, reliable connection solutions.It is applicable to the combination of solar panel.
Specification
Pressure: ≦1000V
Power Capacity：120W(80W~120W)
working current：3A--6A
safety class：ClassⅡ
Water proof grade：IP65
Cable Specification: 4mm2 (TUV1169)
installing torque：1.5m
contact resistance：＜9Mω
Flame Class：UL94-V0
insulating material：PC
Contact Material：H62
Box size：88mm * 74mm * 24mm
Temperature: -40 ℃ ~ +90 ℃
Diodes：10SQ050 *2
Diode brand: jingheng
connector LQ-1 (MC4) through the TUV certificate
Features:
With a strong anti-aging and resistance to ultraviolet on the outer cover
Meets using requirement under bad outdoor condition
built-in 2 ~ 3 a terminal block if according to your needs
The cable Adopts welding connection
Package included:
1pcs Solar Junction Box (Notice:the cable is not inlcluded in the item list,if you need the cable ,please contact us)
