Product Type: Wifi Antenna
Input impedance: 50¦¸
Frequency Range: 2400-2500MHZ
V.S.W.R.: ¡Ü1.5
Gain: 5
Polarization: Vertical
Connector: IPX/u.fl
Radiation: omnidirectional
Cable Length(M): 15CM
Power: 50W
Cable Type:
Operating Temperature: -40C to +60C
Weight: 10g
Housing: Black
Mounting: Magnetic

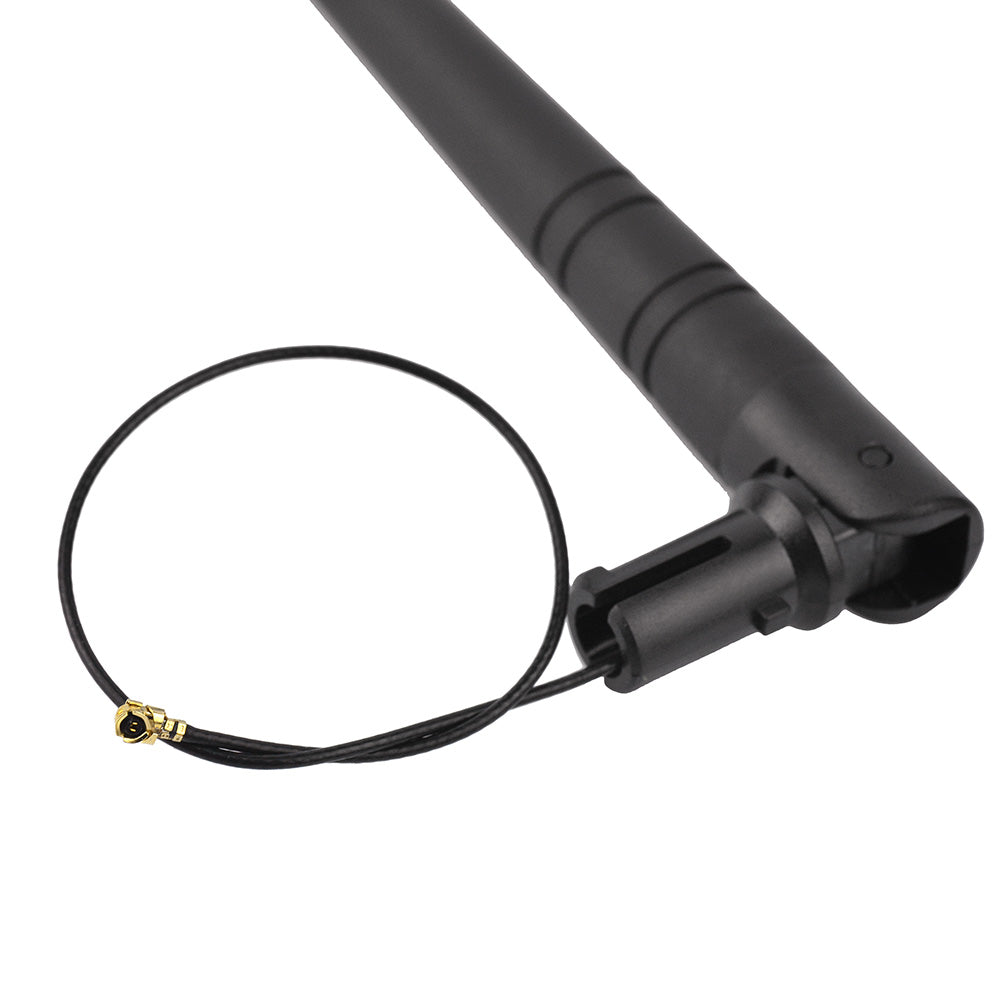

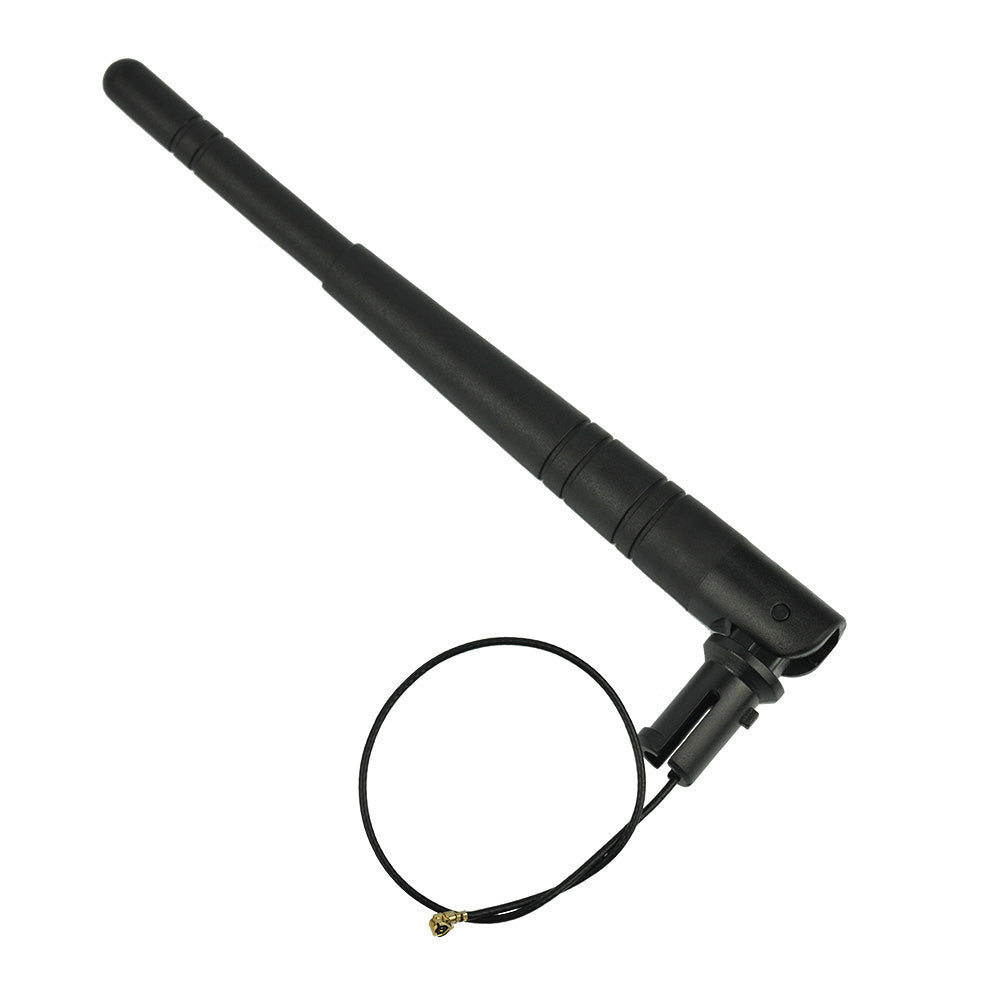

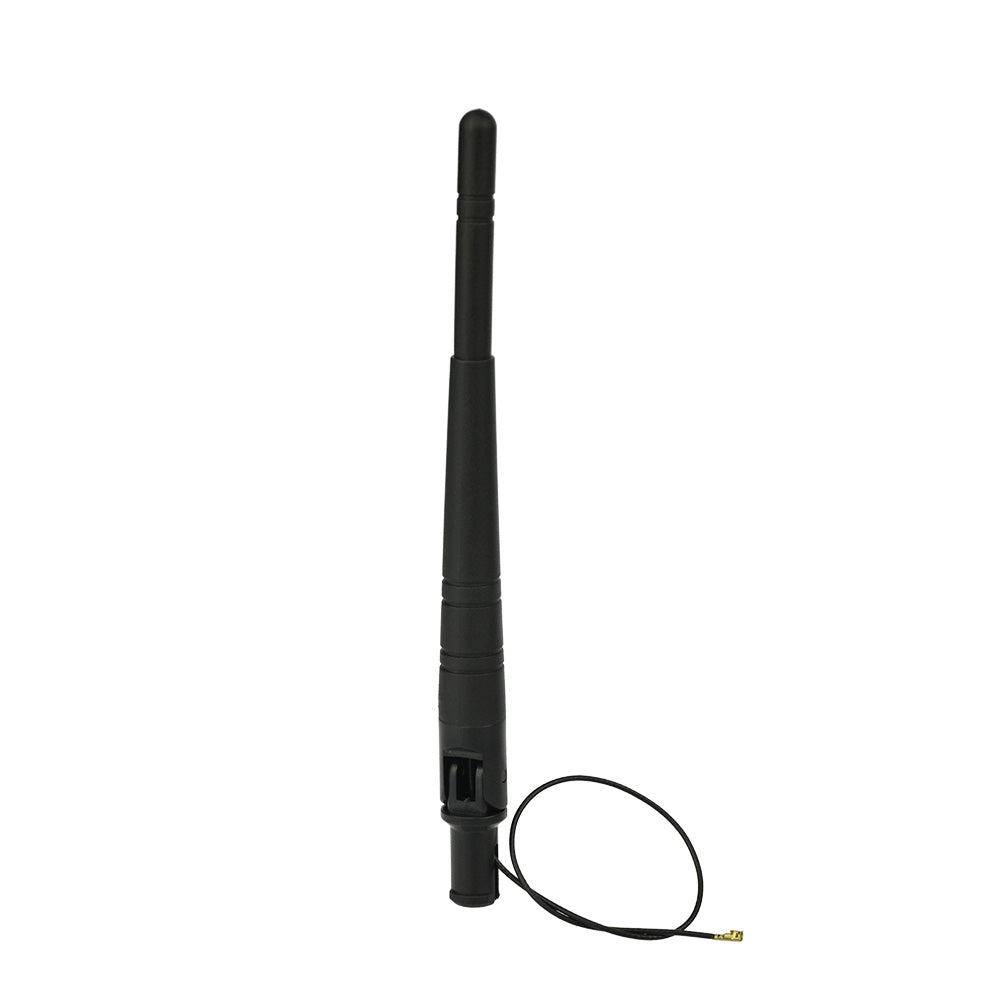

This compact 2.4GHz omnidirectional "rubber-duck" WiFi antenna provides broad coverage and 5dBi gain. It is a coaxial sleeve design with an omni-directional pattern.
This flexible antenna features a tilt-and-swivel IPX/u.fl connector. It is suitable as a replacement RF antenna for many access points and radios that are equipped with IPX/u.fl connectors.
Specification：
Frequency（MHz ）：2400-2500MHZ
VSWR：≤1.5
Gain-dBi：5
Polarization：Vertical
Directionality: omni-directional
Antenna Length(mm)：130mm
Cable Length(mm):15CM
Connector Type：IPX/u.fl Connector
Operational Temperature: -40C to +60C
Storage temperature: -20 to 40 ℃
Bandwidth: 100MHz
Power Capacity:50W
Housing ：Black
Antenna Weight：10g
