Product Type: Antenna
Input impedance: 50
Frequency Range: 824-960Mhz/1710-1990Mhz
V.S.W.R.: ¡Ü1.5
Gain: 2 dbi
Polarization: Vertical
Bandwidth: 136/280
Directionality: omnidirection
Connector: Fakra
Power: 60 w
Antenna Length(mm): 115 x 22 x 4
Vertical panel Beam Width: 360¡ã
Weight: 56g
vertical panel Beam Width: 90¡ã
Cable Type: RG174 3m
Operating Temperature: 40 to 85¡ã
Compatibility:
Frequency Range（MHz）： 824-960Mhz 1710-1990Mh
Bandwidth（MHz）： 136/280
VSWR ≤1.5
Gain（dBi） 2
Max Input powe(W) 60
Input Impedance(Ω) 50
Polarization Type Vertical
Antenna Length(mm):155*20*5
weight 56g
Cable Type RG174
Mounting Adhesive
Optional length:
2 meter
3 meter default
5 meter

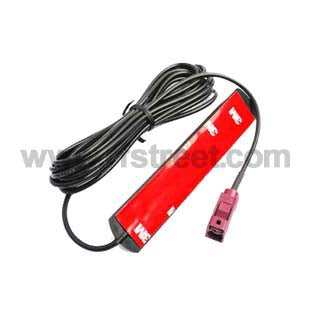

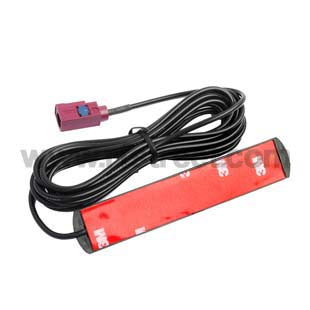

GSM ANTENNA
connector: Fakra female "K"
please contact us if you need other connector(SMB/SMC/BNC/FME/TNC/MCX /MMCX )
The connectors / adapters we can offer you:
