Product Type: GSM Antenna
Input Impedance: 50 Ohm
Frequency Range: 824-960Mhz/1710-1990Mhz
V.S.W.R.: ¡Ü1.5
Gain: 2 dBi
Polarization: Vertical
Bandwidth: 136/280
Directionality: omnidirection
Connector: FME male
Power: 60 w
Antenna Length(mm): 155*20*5
Vertical panel Beam Width: 360¡ã
Weight: 56g
vertical panel Beam Width: 90¡ã
Cable Type: RG174 3m
Operating Temperature: 40 to 85¡ã C
Compatibility:
Frequency Range（MHz）： 824-960Mhz 1710-1990Mh
Bandwidth（MHz）： 136/280
VSWR ≤1.5
Gain（dBi）: 2
Max Input powe(W): 60
Input Impedance(Ω) :50
Polarization Type :Vertical
Antenna Length(mm):155*20*5
weight :56g
Cable Type RG174 3M
Mounting : Adhesive
Optional length:
2 meter
3 meter default
5 meter

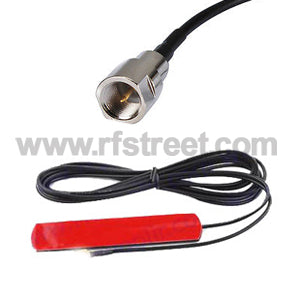

GSM ANTENNA
connector: FME male straight
please contact us if you need other connector(SMB/SMC/BNC/FME/TNC/MCX /MMCX / Fakra )
The connectors / adapters we can offer you:
