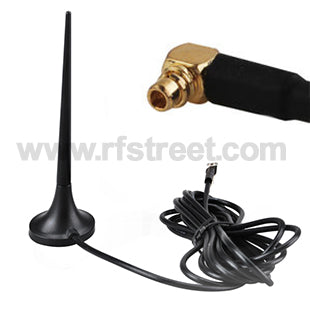

Product Type: 3G Antenna
Input Impedance: 50¦¸
Frequency Range: 850-960/1710-2170MHz
V.S.W.R.: ¡Ü1.5
Gain: 3.5 dBi
Polarization: Vertical
Connector: MMCX male RA
Radiation: omnidirectional
Cable Length: 3M
Power: 50 W
Cable Type: RG174
Operating Temperature: -45 to +75¡æ
Weight: 0.05kg
Storage Temperature: -45 to +75¡æ
Mounting: Magnetic
Housing: Black
100% Brand New High Quality
Magnetic basest and for avoiding the abrasion of your table
Specification:
Frequency Range(MHz) 850-960/1710-2170
GSM/GPRS/EDGE 850/900/1800/1900MHz
HSUPA/HSDPA/UMTS 2100MHz/900MHz
CDMA 1900MHz
VSWR ≤1.5
Gain: 3.5dbi
Max Input power(W): 60
Input Impedance(Ω): 50
Polarization Type: VerticalAntenna Length(mm): 90±1
Cable Length(m): 3M
Cable Type RG58 U/RG 174 default
Cable Connector: MMCX male right angle as default,optional conector:SSMB/SMB/MC-card/SMA/CRC9/FME/MCX/TS9 etc.
Mounting: Magnetic
Housing: Black
Weight:50g
Storage Temperature: -45'c to +75'c
Operating Temperature: -45'c to+75'c
Attention : Please check your device connector to make sure this antenna can meet it
The connectors / adapters we can offer you :
