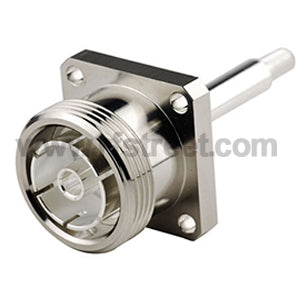

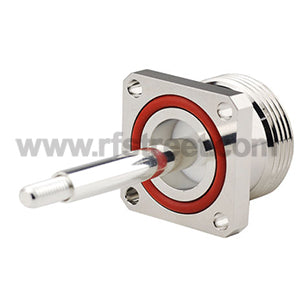

Product Series: 7/16 DIN
Impedance: 50ohm
Frequency range: DC to 6GHz
Centre contact: 0.4 m??
Outer conductor: 1.5 m??
Temperature rating: -40 to 85 (degree Celsius)
Technical characteristics
Electrical data:
Impedance: 50ohm
Frequency range:DC to 6GHz
VSWR: a‰¤1.3
Insertion loss:a‰¤0.35dB,DC-6GHz
Insulation resistance:a‰￥1000mΩ
Test voltage: 4000 V rms
Working voltage:2700 v rms
Contact resistance:
1).Centre contact: 0.4 mΩ
2).Outer conductor:1.5 mΩ
Environmental Data:
Temperature rating: -40 to 85 (degree Celsius)
2002/95/EC (RoHS): Compliant
Mechanical data:Mating cycles:a‰￥500
MATERIAL & PLATING
shell brass nickelplated
inner conductor brass goldplated or silver-gilt
insulator PTFE
crimping suite copper alloy nicked or goldplated
o-ring sealing 6146 silastic
APPLECABLE STANDARD
DIN47223;
IEC169-4;
CECC22190
