BNC RF connectors are the most popular coaxial connector. The special bayonet design allows easy mating and un-mating. BNC 50 ohm connectors provide repeatable electronic performance from DC to 4 GHz. BNC 75 ohm connectors are suitable for applications up to 1 GHz. All 50 and 75 ohm connectors are intermatable.
BNC type connectors are designed to accommodate a large variety of RG and industry standard cables. They are available in crimp, clamp, and twist on cable styles. A full line of printed circuit board receptacles, bulkhead receptacles, and other accessories complement the product offering.
BNC connectors are designed to conform to MIL-C-39012 IEC 60169-8 CECC 22120 and BS 9210N004 specifications.
|
Product Series: |
BNC |
|
Datasheets: |
|
|
Product Type: |

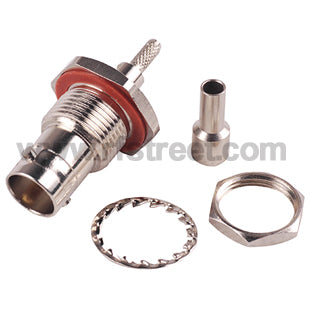

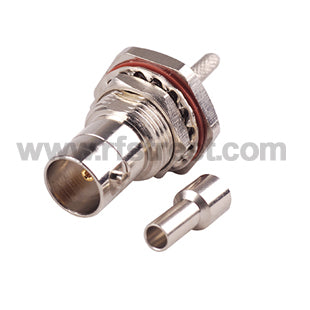

Cable mount |
|
Application: |
Crimp |
|
Attachment/Affixment: |
bulkhead with O-ring |
|
Body Plating: |
Nickel plated |
|
Body Termination: |
Crimp |
|
Cable Type: |
RG179,RG174,RG316,LMR100 |
|
Connector Body Style: |
Straight |
|
Connector Material: |
Brass |
|
Contact Plating: |
Nickel |
|
Contact Termination: |
Solder |
|
Gender: |
Jack |
|
Impedance: |
75 Ohm |
