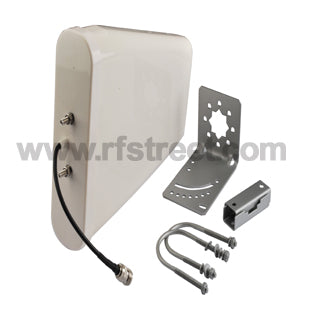

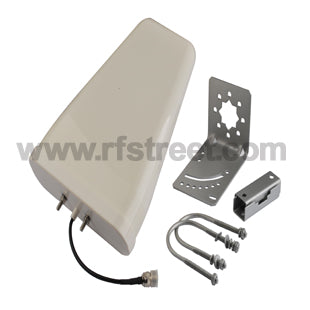

Product Type: 3G Antennas
Input Impedance: 50¦¸
Frequency Range: 800~2500mhz
V.S.W.R.: ¡Ü2.0
Gain: 8dBi
Polarization: Vertical
Connector: N-Type
Radiation: omnidirectional
Cable Length: 15CM
Power: 50W
Cable Type:
Operating Temperature: -45 to +75¡æ
Weight: 1kg
Storage Temperature: -45 to +75¡æ
Mounting: U type
Housing: white
Frequency Range(MHz):800~2500MHZ
VSWR ≤2.0
Gain: 8dbi
Max Input power(W): 100
Bandwidth:360
Input Impedance(Ω): 50
Polarization Type: Vertical
Radiation: omnidirectional
Cable Length(m): 15CM
Connector Type : N female or customized
SMA/SSMB/CRC9/TS9/MS147/FME/MC-Card..and so on. please give us notes if the connector is chosen !
The connectors / adapters we can offer you:
