Product Series: MCX
Product Type: PCB Mount
Body Plating: Goldplated
Connector Body Style: Straight
Connector Body Style: Straight
Connector Material: Brass
Contact Plating: Goldplated
Gender: Jack
Impedance: 50 Ohm

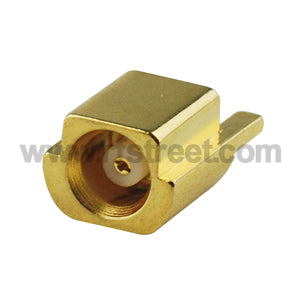

MCX connector is one kind of RF connectors. This MCX connector is jack/ female and straight type with edge mount outlook . It’s designed to terminate with PCB from side. Its plating is Gold over brass and the impedance is 50 ohm.
MCX connector is small size RF connectors. MCX Connector is designed to be snap-on coupling. Besides, MCX jack crimp series still have Right angle jack, straight bulkhead crimp jack, straight jack, PCB jack. MCX Connector commonly is used for 0~4GHz. If you need higher working frequency, special mechanical design, customized RF connectors, or RF cables, please contact us.
MCX connector jack straight edge mount type can be soldered on PCB from edges and transmit RF Signal. MCX RF connector is most commonly used in GPS Antenna, GSM Antenna or W-LAN application these kinds of RF connectors or RF antenna industry.
