Product Type: GPS Antenna
V.S.W.R: 1.5:1
Center Frequency: 1575.42MHz¡À3 MHz
Band Width: ¡À5 MHz
Cable: RG174
Cable length: 3M default or customize
Impendence: 50 ohm
Mounting: Magnetic base
Connector type: TNC Plug default or customize
Characteristic:
（i） Dieletric Antenna
Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impendence 50 ohm
Peak Gain ＞3dBic Based on 7×7cm ground plane
Gain Coverage ＞-4dBic at –90°＜0＜+90°(over 75% Volume)
Polarization RHCP
（ii） LNA/Filter
LNA Gain (Without cable) 13dB/26dB/28dB/other Typical
Noise Figure 1.5dB
Filter Out Band Attenuation (f0=1575.42 MHZ)
7dB Ｍin f0+/-20MHZ ;
20dB Ｍin f0+/-50MHZ;
30dB Ｍin f0+/-100MHZ
V.S.W.R ＜2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 5mA /11mA/15mA Max
< br>（iii）Mechanical
Weight ＜100gram
Size 3.3 x 3.7 x 1cm
Cable RG174 3 meter / contact us for other length

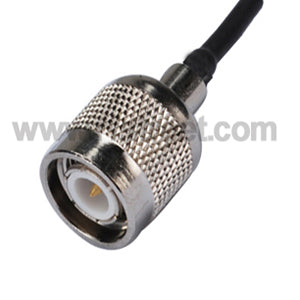

Connector TNC male /SMA/SMB/SMC/BNC/FME/MCX /MMCX or other
Mounting Magnetic base
Housing Black
（iv）Environmental
Working Temp -40℃~+85℃
Storage Temp. -45℃~+100℃
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity Humidity95%~100%RH
Weatherproof 100%Waterproof
