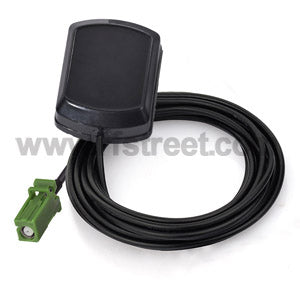

Center Frequency: 1575.42MHz¡À3 MHz
V.S.W.R: 1.5:1
Cable: RG174 3 meter

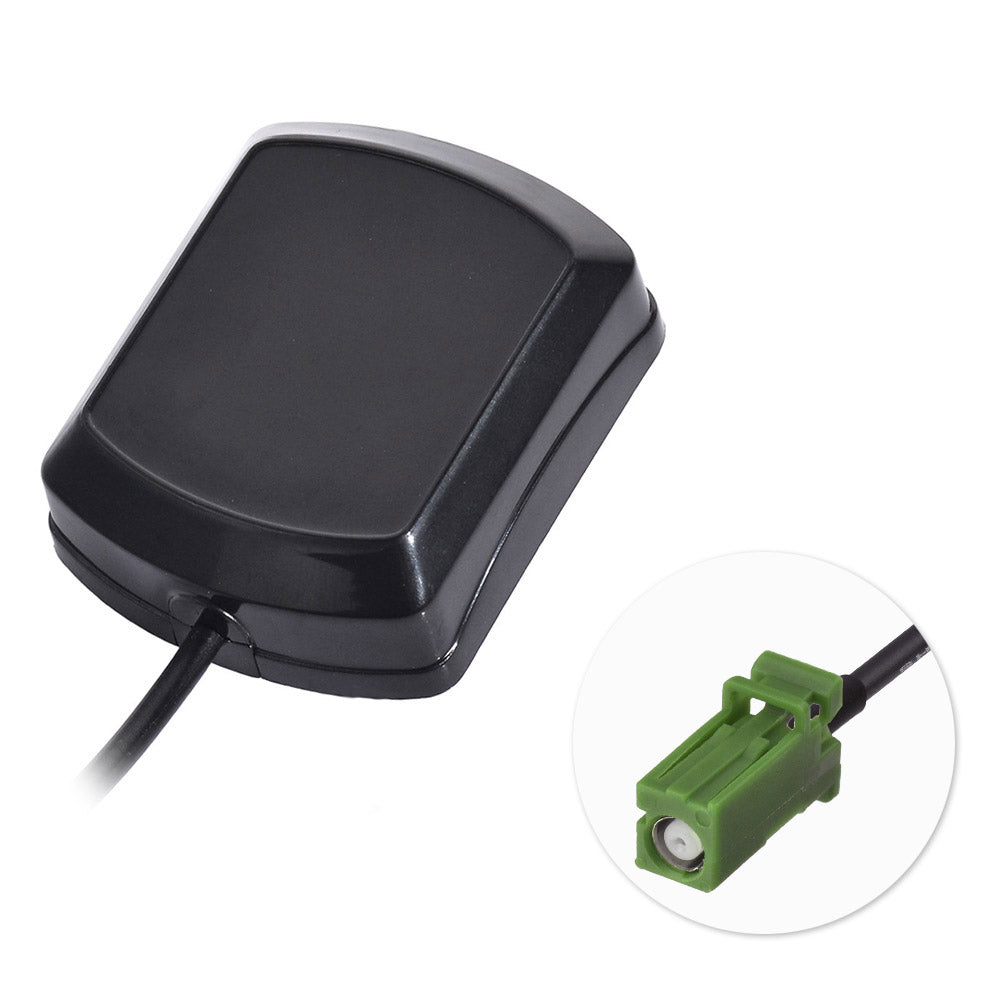

Connector: Green AVIC Female
Mounting: Magnetic base
Weatherproof: 100% Waterproof
（i） Dieletric Antenna
Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impendence 50 ohm
Peak Gain ＞3dBic Based on 7×7cm ground plane
Gain Coverage ＞-4dBic at –90°＜0＜+90°(over 75% Volume)
Polarization RHCP
（ii） LNA/Filter
LNA Gain (Without cable) 28+/-3dB
Noise Figure 1.5dB Typ.
Filter Out Band Attenuation (f° =1575.42MHz)
7dB Ｍin f0+/-20MHZ ;
20dB Ｍin f0+/-50MHZ;
30dB Ｍin f0+/-100MHZ
V.S.W.R ＜2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 5mA /11mA/15mA Max
（iii）Mechanical
Weight ＜100gram
Size :48x39x16mm
Cable :RG174 3 meter / Contact us for other length
Connector : Green AVIC Femaledefault/SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/WICLIC in straight or right angle please give us some notes if the antenna connector is chosen.Tks!
Mounting Magnetic base
Housing Black
（iv）Environmental
Working Temp -40℃~+85℃
Storage Temp. -45℃~+100℃
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Relative Humidity 95% non-condensing
Weatherproof 100% Waterproof
(V) FEATURES:
Compact Construction/ Low Profile/
Fully Waterproof
Magnet and Screw Mount Base
Excellent Temperature Stability
Low Noise Figure
High Sensitivity
(VI) APLICATIONS:
Pioneer
AVIC-F7010BT
AVIC-F900BT
AVIC-F90BT
AVIC-F700BT
AVIC-X910BT
AVIC-X710BT
AVIC Z110BT
AVIC Z120BT
AVIC Z130BT
AVIC X7115BT
AVIC F310
AVIC F70
AVIC X920
AVIC X930
AVIC X9110
AVIC-X510
AVIC-5000NEX
AVIC-5100NEX
AVIC-5200NEX
AVIC-6000NEX
AVIC-6100NEX
AVIC-6200NEX
AVIC-6201NEX
AVIC-7000NEX
AVIC-7100NEX
AVIC-7201NEX
AVIC-8000NEX
AVIC-8100NEX
AVIC-8200NEX
AVIC-8201NEX
AVIC-EVO1-DT2-C-GR
AVIC-EVO1-DT2-C-OE
AVIC-EVO1-G72-BBF
AVIC-EVO1-G72-DMD
AVIC-EVO1-G72-QYI
AVIC-EVO1-OC2-MTB
AVIC-EVO1-PL2-VAL
AVIC-F88DAB
AVIC-F980BT
AVIC-F980DAB
AVIC-Z610BT
AVIC-Z620BT
AVIC-Z710DAB
AVIC-Z720DAB
AVIC-Z810DAB
AVIC-Z820DAB
AVIC-Z910DAB
AVIC-Z920DAB
Not all applicable models are listed. If you have any questions about the product, please contact us. The length of the antenna can be customized.
