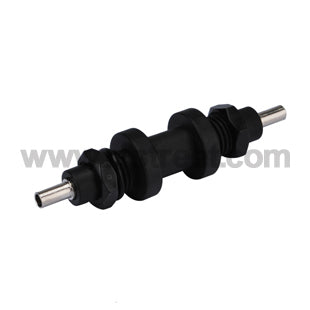

MC3 Solar panel connector solar deck panel Junction Box 4mm-1 SET

SKU: MC3-2303-SET
Price:
$4.50 USD

Product Type: Solar Panel Connector
Waterproof Grade: IP67

Rated current:：20A（4mm2 ）
Rated voltage：DC1000V
Contact resistance：<=0.5mΩ
Insulation resistance： ＞ 500MΩ
Suitable cable：4mm2
Range of out of jacket of cable：Φ5mm ～Φ 7mm
Ambient temperature range：-40 ℃～ + 105 ℃
Degree of protection:IP67
Safety class II
Insulation material: PPO,Black
Contact material: copper, nickel- plated
Flame calss:UL94-V0

Package include :
1 SET MC3 Solar panel connector
