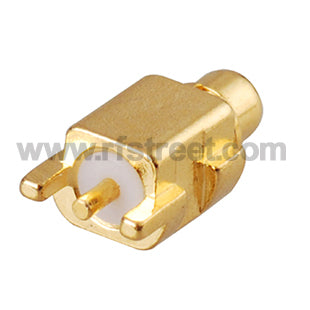

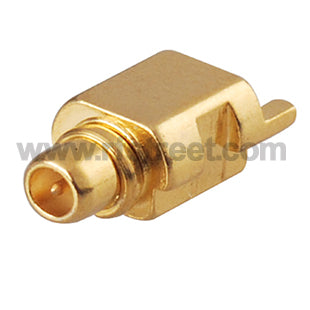

Product Series: MMCX
Product Type: Edge PCB Mount
Body Plating: Goldplated
Connector Body Style: Straight
Connector Material: Brass
Contact Plating: Goldplated
Gender: Plug
Impedance: 50 Ohm
MMCX micro-miniature RF connectors are suitable for 50 ohm applications and provide repeatable electronic performance from DC to 6 GHz. The snap-on mating design offers low RF leakage and ease of assembly in dense packaging layouts.
Due to their non-slotted contact , their series connectors can provide a low R.F leakage in R.F circuits & in space critical applications. MMCX type connectors are light weight, compact and reliable.
MCX type connectors enable space reduction over similar SMB/SMC types. MCX connectors are designed to conform to CECC 22220 specifications.
Typical applications for MMCX connectors are PCMCIA cards and other small hand-held communications devices.
