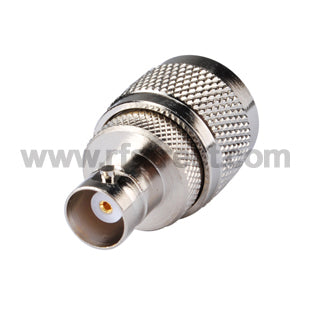

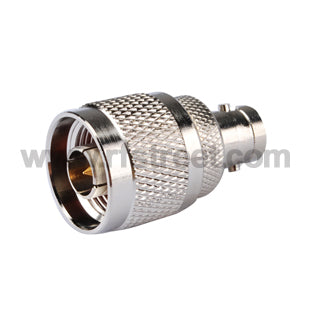

Product Type: Coaxial, RF Adapters
Impedance: 50 Ohm
Series: Between Series N-BNC
Connector material: Brass
Convert From(Adapter End): N Plug
Body Plating: Nickelplated
Convert To (Adapter End): BNC Jack
Contact Plating: Goldplated
Operating Temperature: -55 ¡ãC to +155¡ãC
Insulator: PTFE
Frenquency Range: DC-3GHz
VSWR @ 1GHz: < 1.3:1
IL @ 1GHz: < 0.20dB
RF adapters cost effective solution,which is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.
RF adapter product line includes in-series RF adapters design and between series adapter designs as well as T and Cross RF adapters.
Interface types are included in RF adapter ,such as SMA, TNC, N and BNC,which are available in male, female, plug, jack, receptacle gender, in 50 Ohm &75 Ohm impedance and in standard polarity or reverse polarity.
RF adapters are available in quick disconnect (QD), push-on or standard interface , straight, 90 degrees versions,as well as bulkhead ,or 4 hole panel configurations.
RF adapters in standard and high performance with brass body .The stainless steel body will be customized !
