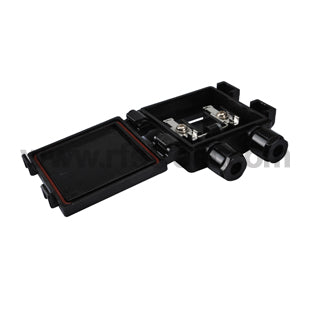

The Solar Junction Box, designed for robotic-assembly of silicon photovoltaic systems, reduces assembly time and production costs for PV-panel manufacturers. Rugged and durable, IP67-sealed, DC connectors feature simple snap-lock mating and an internal locking mechanism for superior safety. They are designed for direct connection to solar junction boxes, field installations and PV grid wiring. In addition, DC double-insulated cable assemblies, with proven long life cycle and optimum weather resistance, meet the demands of harsh and outdoor solar wiring applications.
Main technical parameters
Current for PV Module 3A--6A
Rated Voltage DC 1000V
Protection Degree IP65
Power Capacity 60W Solar panel
Diodes Details 1 pcs
Number of terminals 2 rails
Touch Protection Class Class Ⅱ
Temperature Range -40°C ~ 85°C
Wire Size
4mm² defalut
2.5mm²
Mounting torque
1.5m
Contact Resistance ＜9Mω
Flame Class UL94-V0
Contact Material H62
Insulation Material PC
Overall dimensions 60*60*20.5mm
N.W(KG) 0.060KG
Product Features:
1.With the capacity of anti-aging and UV resistant, provide longer life span under outdoor bad condition.
2.Adopted reliable connection solution ,simple,quick and safe effective field assembly.
3.Adopted welding and solder connect way,easy,quick and reliable
