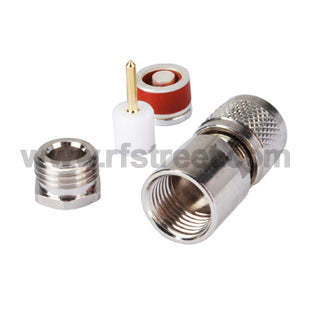

Product Series: Mini UHF
Product Type: Cable mount
Cable Type: RG58, RG400,RG142,LMR195
Attachment/Affixment:
Connector Body Style: Straight
Body Plating: Nickelplated
Body Termination: Clamp
Connector Material: Brass
Gender: Plug
Contact Plating: Goldplated
Contact Termination: Solder
Impedance: 50 Ohm
Insulator: PTFE
Temp.range: -40¡«+85 ¡æ
Mini-UHF is a miniature version of the UHF connectors that were developed for use in the radio industry.
Mini-UHF connectors are designed for use as coaxial interconnection in cell phones, automotive systems, and similar applications where size, weight, and cost factors are critical.
Mini-UHF connectors terminate to RG-58, RG-58A, RG-58B, RG-58C, and Belden 9258 cables. Crimp-type cable plugs and jacks are available as well as panel and printed circuit board receptacles.
Technical characteristics
Temp. range................ -40～+85 ℃
Impedance.................Non-constant
Frequency Range...........DC0-300 MHz
Working Voltage...........750V
Withstand Voltage.........2000V
Contact resistance
Center Contact............≤5mΩ
Outer Contact.............≤5mΩ
Insulation resistance ....≤5000mΩ
Durability (mating)........ 500 (cycles)
MATERIAL & PLATING
Shell .............. ... ....Brass ............. ...... .......Nickel-plated
Contact pin ........ ... Brass.............. .........Gold plated
Socket............. ... ...Beryllium...... ...... .......Gold plated
Insulator .......... ... ...PTFE or PE
Crimping suite..... ... Copper alloy....... .....Nickel-plated
APPLECABLE STANDARD
IEC 60169-12;
GB/T 15888.
Offer custom:
If you require a different mounting style, we will be happy to consider your requirements to provide a working solution.
