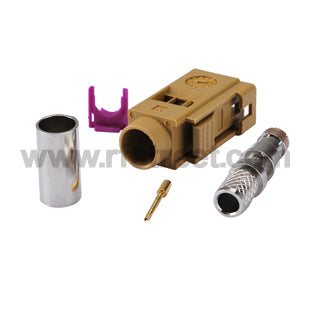

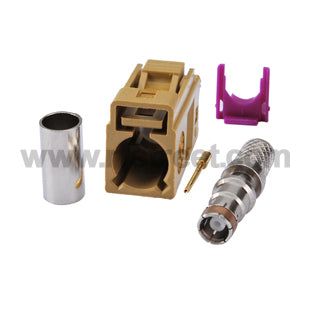

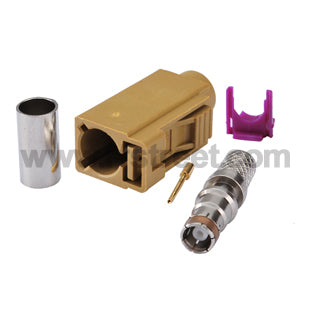

RF Fakra Connector crimp Jack Curry Satellitic Radio With IF 01

SKU: F03-SJL19-K
Price:
$2.05 USD

Product Type: Fakra Connector
Impedance: 50¦¸ nominal
Application: wireless and GPS applications
Frequency Range: DC-6GHz(optimized DC-4GHz)
Suitable cable: RG58 LMR195
V.S.W.R: <1.5
Center Contact: Brass
Insulation Resistance: 1000 M¦¸ min
Body: Brass
Contact Resistance: <40 m
Center Contact: Gold-palted
Dielectric Withstanding Voltage: >800 VRMS(Interface only)
Body: Nickel-plated
Temperature Range: -40 / +100¡æ
