Product Series: SMA

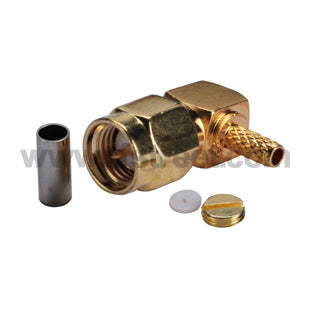

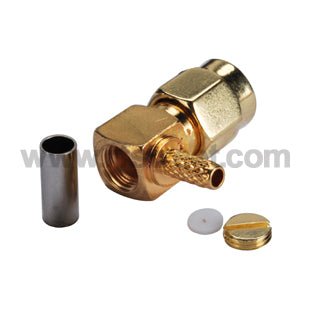

Product Type: Cable mount
Application: Crimp
Body Plating: Goldplated
Body Termination: Crimp
Cable Type: RG-174,RG-188A,RG316,LMR100
Connector Body Style: Right Angle
Connector Material: Brass
Contact Plating: Gold
Contact Termination: Solder
Gender: Plug
Impedance: 50 Ohm
Dielectric: Teflon
Temp.range: -65~ +165
Series SMA are very popular thread coupling miniature coaxial connectors.
Which have the excellent performances of high reliability, high mechanical strength,high durability ,and optimum electrical properties, are widely used to connect RF coaxial cables for mobile communication equipments and electronic communication instruments
The interface dimensions and technical characteristics are in accord with the specifications of MIL-C39012.IEC 169-15 and CECC22110
Electrical:
Temperature Range: -65～ +165
Impedance: 50 ohm
Frequency range : Flexible cable DC～12.4GHz / Semi-rigid cable (0～18GHz)
Working Voltage: 335V max
Insulation resistance:≥5000 mΩ
Withstand Voltage.:1000V rms
Contact resistance : Center Contact:≤3mΩ / Outer Contact".≤2mΩ
Insertion loss : ≥0.15 dB/6GHz
VSWR Straight. :≤1.10+0.002f / ≤1.05+0.001f
Right angle : ≤1.20+0.003f / ≤1.10+0.001f
Durability(mating)..:≥ 500 (cycles)
APPLECABLE STANDARD
MIL-C-39012;
CECC 22110;
IEC 60169-15
Datasheets:
Offer custom:
If you require a different mounting style, we will be happy to consider your requirements to provide a working solution.
