Product Type: RF Coaxial cable
Impedance: 50ohm

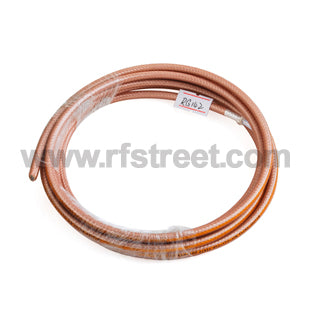

RG Series MIL-C-17 RF coaxial cable RG142 USD 9.45 /m
Applications:
1. RG series MIL-C-17 cable originally created to support WWII military application. These cable quickly became the products of choice for commercial wireless applications once they hit the surplus market, such as microwave systems, military aerospace, military ground-based communication systems---
Key Features:
1. Meet all MIL-C-17 requirements
2. Good shielding effectiveness
3. Low passive intermod (PIM)
4. Readily available in distribution
M17 Part No.: M17/60-RG142
PHYSICAL PROPERTIES
|
|
Material |
Diameter(mm) |
|
1. Inner conductor |
Sliver plated copper |
0.93 |
|
2. Insulation |
PTFE |
2.95 |
|
3. Outer conductor |
Sliver plated copper double |
3.95 |
|
4. Jacket |
FEP |
4.95 |
ELECTRICAL PROPERTIES
| Nom. Capacitance Conductor to Shield(pF/m) |
96.5 |
|
Nom. Characteristic Impedance(ohm) |
50 |
|
Nom. Velocity of Propagation(ï¼…) |
70 |
|
Min. Bend Radius(Install)(mm) |
25 |
|
Voltage Rating(VMS) |
1900 |
|
Max. Operating Frequency(MHz) |
8000 |
|
Operating Temperature Rating(°C) |
-55+200 |
Nom. Attenuation
| Frequency(MHz) |
Nom. Attenuation(¯dB/m) |
|
100 |
0.125 |
|
400 |
0.256 |
|
1000 |
0.420 |
|
3000 |
0.781 |
|
5000 |
1.050 |
