SMA connectors, short for Sub Miniature Version A, are semi-precision, subminiature devices that provide repeatable electrical performance from DC to 12.4 GHz with flexible cable. SMA connectors feature screw-type coupling. Semi-Rigid cabling extends the frequency range of the device to 18GHz.
SMA connectors offer broadband performance with low reflections and constant 50 ohm impedance. These properties, along with minimum attenuation and low VSWR have made the SMA connector extremely popular in the microwave community.

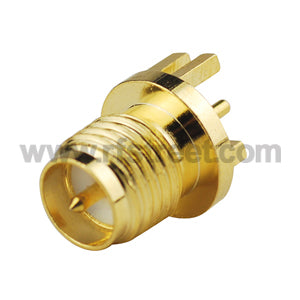

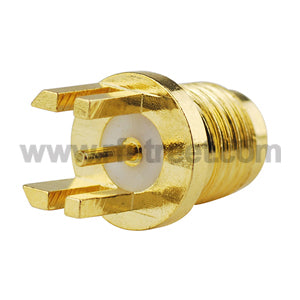

| Product Series: | SMA |
| Drawing: | |
| Product Type: | PCB Mount |
| Polarity | Reversed Polarity |
| Body Plating: | Gold plated |
| Body Termination: | Solder |
| Suitable PCB Size: | 1mm (0.4’’) |
| Connector Body Style: | Straight |
| Connector Material: | Brass |
| Contact Plating: | Gold |
| Contact Termination: | Solder |
| Gender: | Jack (Female) |
| Impedance: | 50 Ohm |
