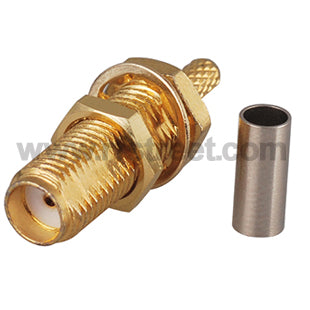

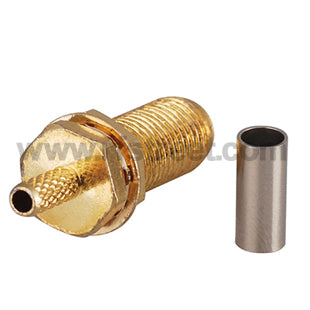

Product Series: SMA
Product Type: Cable mount
Application: Crimp
Attachment/Affixment: Bulkhead with Nut
Body Plating: Goldplated
Body Termination: Crimp
Cable Type: Straight
Connector Material: Brass
Contact Plating: Gold
Contact Termination: Solder
Gender: Jack
Impedance: 50 Ohm
Weight: 5g
SPECIFICATION :
SMA connectors, short for SubMiniature Version A, are semi-precision, subminiature devices that provide repeatable electrical performance from DC to 12.4 GHz with flexible cable. SMA connectors feature screw-type coupling. Semi-Rigid cabling extends the frequency range of the device to 18GHz.
SMA connectors offer broadband performance with low reflections and constant 50 ohm impedance. These properties, along with minimum attenuation and low VSWR have made the SMA connector extremely popular in the microwave community.
Technical characteristics
Temp.range....................-65～ +165 ℃(PE Cable -～ +85)
Vibration........................ MIL-STD-202,Method 213
Impedanec......................50Ω
Frequency Range.............DC0～12.4GHz(0～18GHz)
Working Voltage..............335V max
Withstand Voltage.......... 1000V rms
Contact resistance
Center Contact................≤3mΩ
Outer Contact..................≤2mΩ
Insulation resistance.........≥5000 mΩ

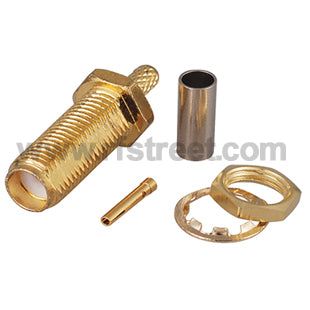

MATERIAL & PLATING
Shell......................Brass ........... ...........Goldplated
Inner conductor............Beryllium or tin brass .......Goldplated
Insulator .................PTFE
Crimping suite.............Copper alloy .................Nicked or goldplated
APPLECABLE STANDARD
MIL-C-39012;
CECC 22110;
IEC 60169-15
