Description
Low Profile 4G LTE MIMO Magnetic Mount Omni-directional Dual SMA Male Antenna for Huawei Sierra Netgear ZTE Novatel D-Link 4G LTE Wireless Router
4G LTE Antenna MAIN Specification:
Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz
V.S.W.R: ＜2.0
Polarization: Linear Vertical
Gain: 3dBi
Impendance: 50Ω
4G LTE Antenna AUX Specification:
Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz
V.S.W.R: ＜2.0
Polarization: Linear
Gain: 3dBi
Impendance: 50Ω
Mechanical:
Cable: RG174

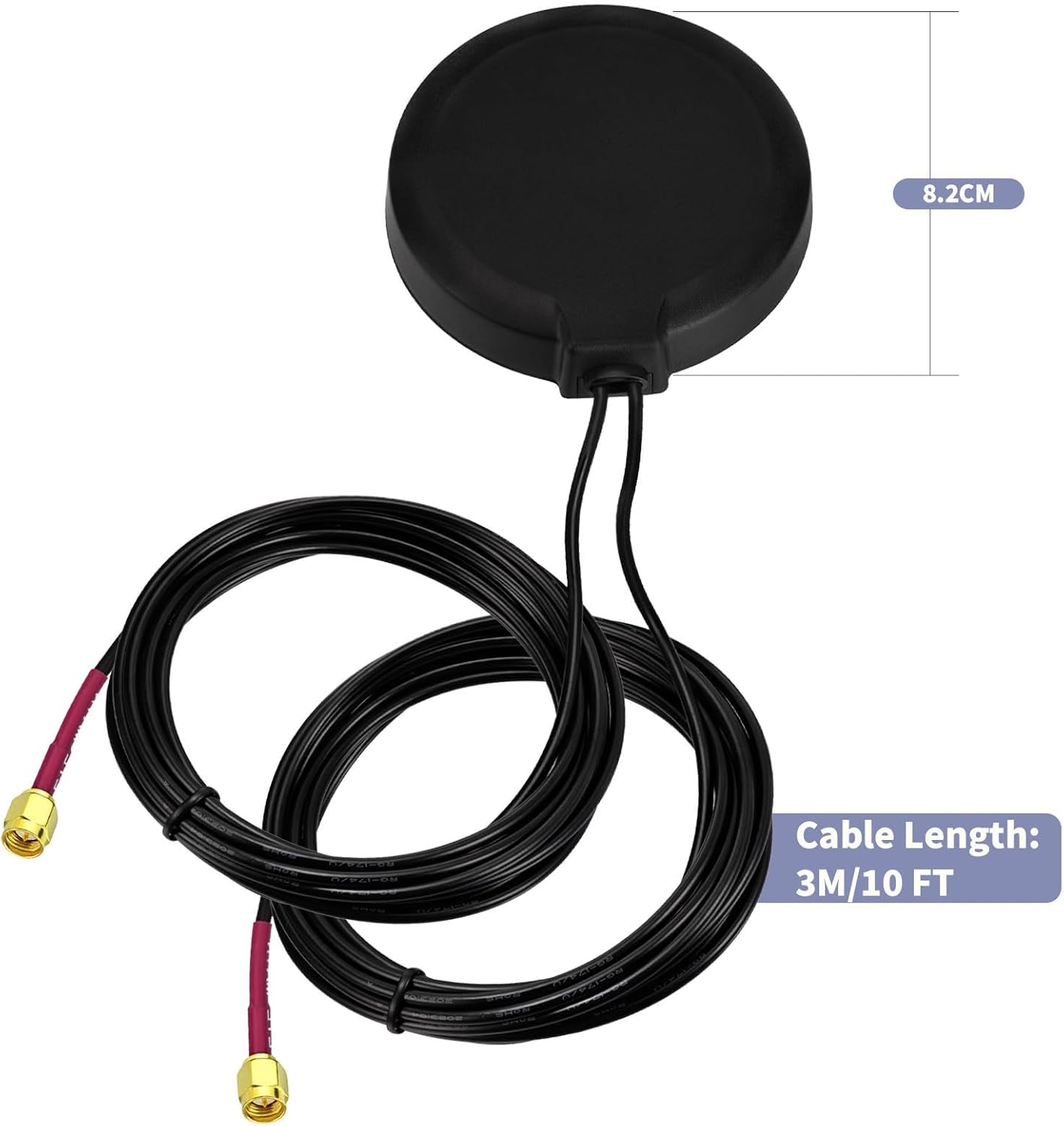

Cable Length: 3 Meters
Connector: SMA Male Connector

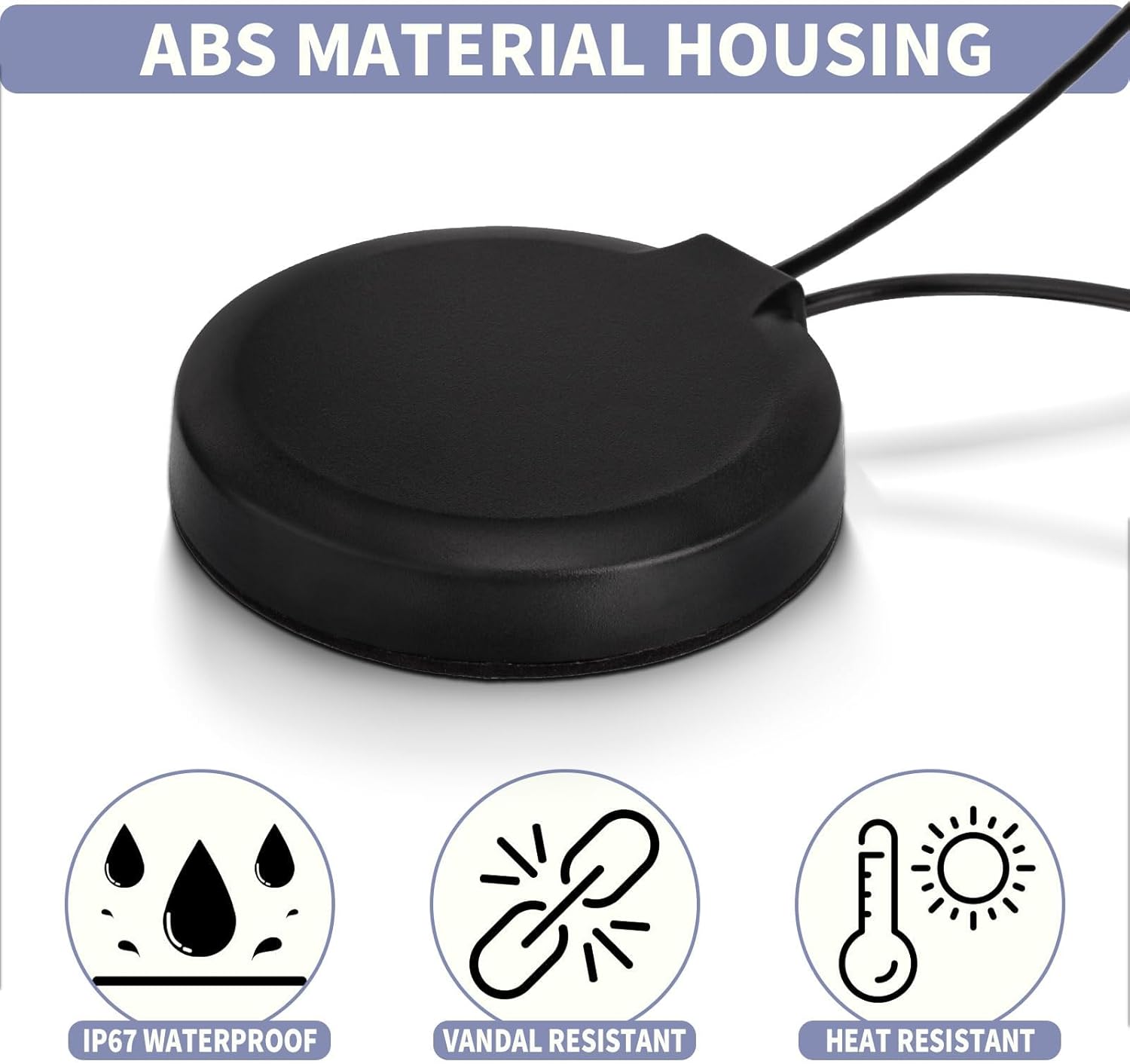

Material: ABS
Mounting Method: Adhesive/Magnet
Environmental:
Operating Temperature: -20°С ~ +80°С
Storage Temperature: -30°С ~ +85°С
Relative Humidity: Up to 95%
Ingress Protection: IP67
Vibration: 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
Product Overview
- Antenna:
- Brand: Superbat
- Color: Black
- Number of Channels: 3
- Impedance: 50 Ohm
- Manufacturer: wlaniot
- Number of Items: 1
Product Features
- 4G LTE Adhesive Magnetic Mount Antenna Frequency Range: 698-960 MHz/1710-2170 MHz/2300-2700 MHz | Gain: 3 dBi | V.S.W.R: ＜2.0 | Direction：Omni-directional | Impendance: 50Ω| Connector：Dual SMA Male | Ingress Protection : IP67 | Cable Length：3m/10 feet

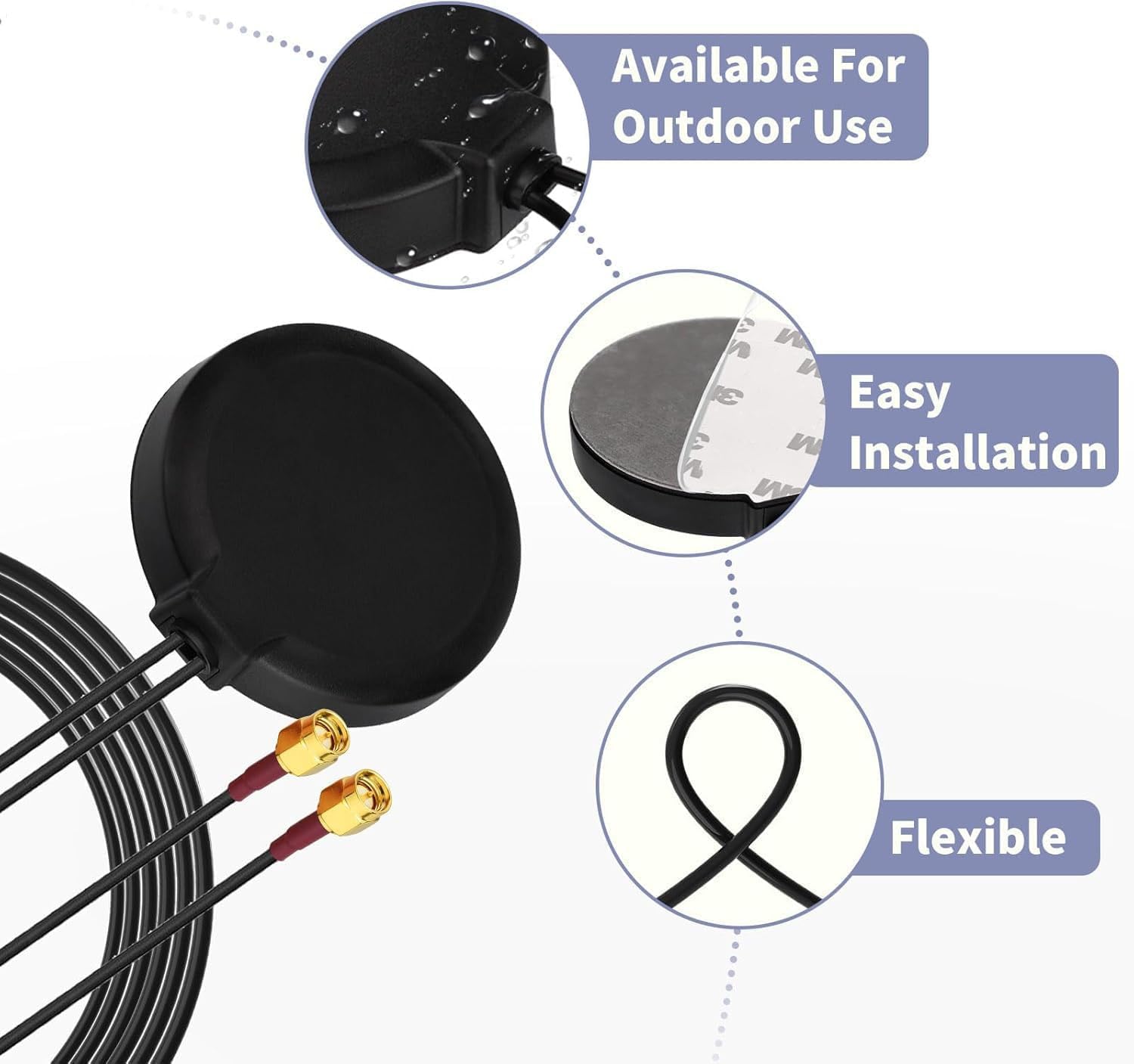

- This 4G LTE MIMO antenna supports IP67 waterproofing, and both connector sockets support MIMO. It also has a sturdy ABS shell and is suitable for use in various environments.
- Omni-directional Waterproof Antenna is good for Muddy Camera, 4g wifi hotspot, cellular router, Usb Modem, Module, Signal Booster,security Camera, Mobile Hotspot, Lora Gateway，4G LTE Router, trail camera，CPE Router, MMDVM Hotspot Board etc.
- MIMO SMA Male Antenna Compatible with 4G LTE Wireless Router Home Mobile Modem Hotspot Industrial IoT Router Cellular Gateway ;Compatible with SCADA, IoT, Telemetry, OiL&Gas, Signage, Kiosks, Vending Machines, Control Panels for Utilities, Smart metering, Smart Cities, Cellular Modems.

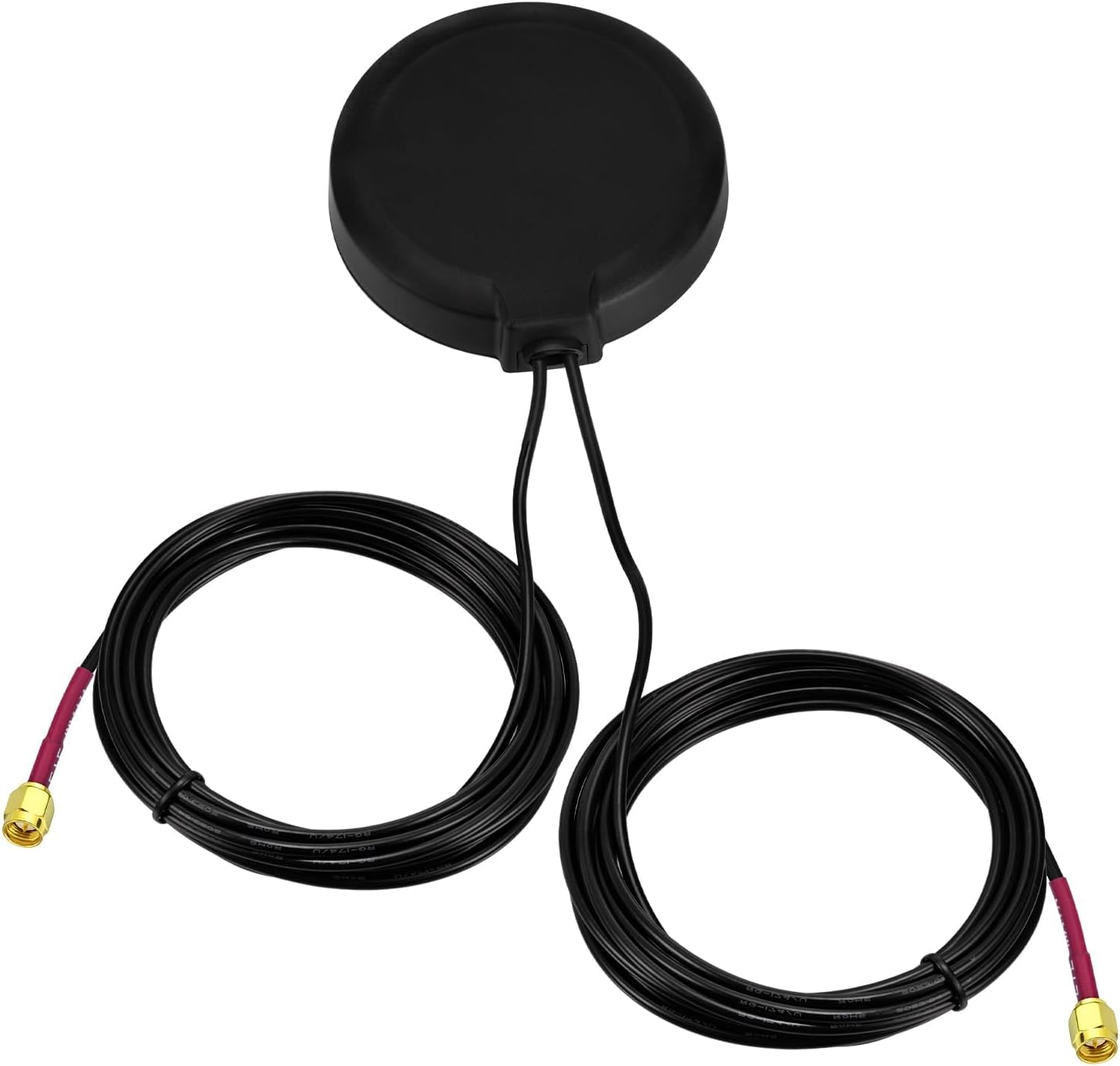

- Package: 1 x Low Profile 4G LTE MIMO Antenna Magnetic Mount Omni-directional Dual SMA Male Antenna.
