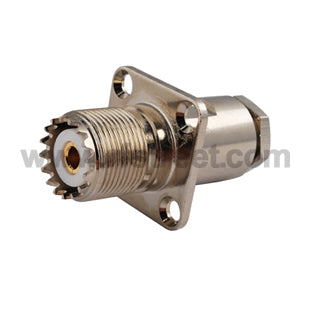

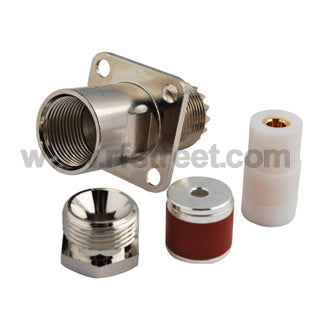

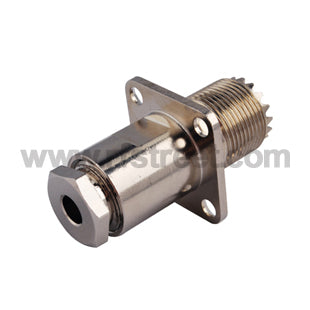

Product Series: UHF
Product Type: Cable mount
UHF version: Metric Version
Attachment/Affixment: Flange /Panel
Cable Type: RG58, RG400,RG142,LMR195
Body Plating: Nickelplated
Connector Body Style: Straight
Connector Material: Brass
Body Termination: Clamp
Contact Plating: Goldplated
Gender: Jack
Impedance: 50 Ohm
Contact Termination: Solder
Temp.range: -55¡« +155¡æ
Insulator: PTFE
UHF coaxial RF connectors were one of the first RF connector series to be developed.. The 5/8"-24 thread coupling and clamp, crimp, twist-on, and solder terminations give the UHF the flexibility that has kept it one of the most popular coaxial connectors over the years.
Among the many applications of this low cost, low frequency device are antenna connections for CB radios, public address systems, audio, video, mobile radio, and test equipment.
Technical characteristics
Temp. range................-40～+85 ℃
Impedance.................50 Ω
Frequency Range...........DC 0-2.5GHz
Working Voltage...........750V
Dielectric Withstand Voltage........ 1,000 Vrms (at sea level)
Contact resistance
Center Contact............≤5mΩ
Outer Contact.............≤5mΩ
Insulation resistance ....≤5000mΩ
Durability(mating)........ 500 (cycles)
MATERIAL & PLATING
Shell ..............brass ...............nickel-plated
Contact pin ........brass..............gold plated
Socket............. beryllium.......... gold plated
insulator ..........PTFE or PE
Crimping suite..... copper alloy......... nickel-plated
APPLECABLE STANDARD
IEC 60169-12;
GB/T 15888.
Offer custom:
If you require a different mounting style, we will be happy to consider your requirements to provide a working solution.
