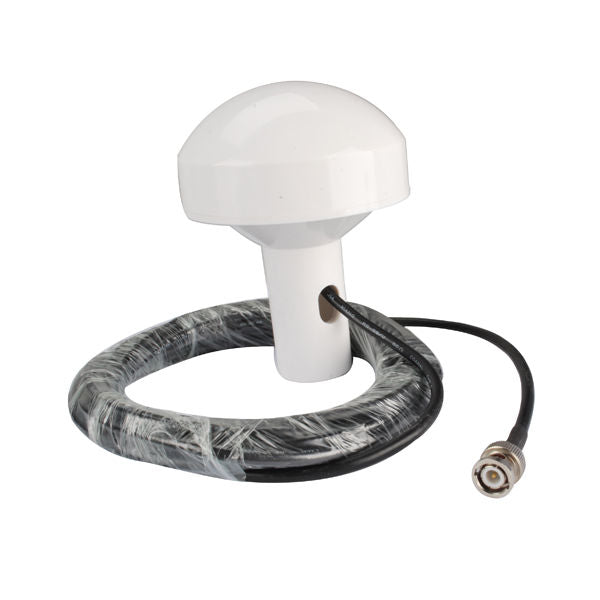

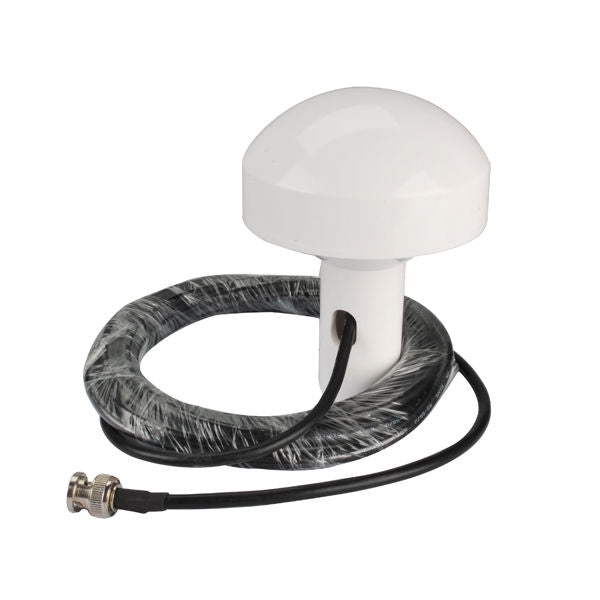

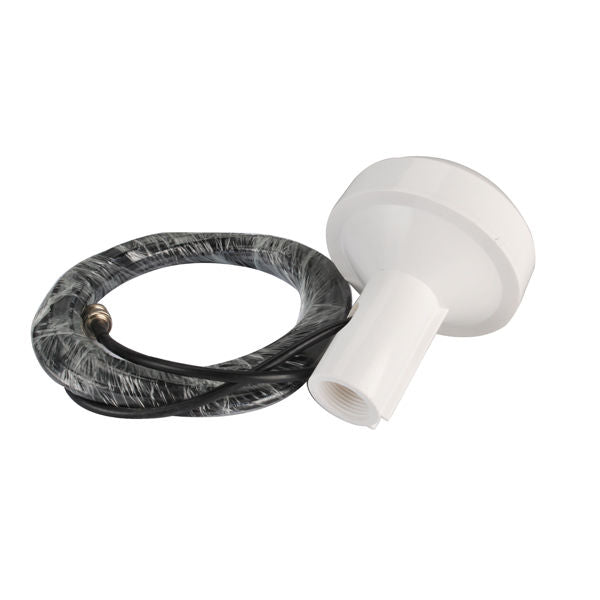

Weatherproof GPS timing antenna 5 meter BNC Plug with RG58 coax cable

SKU: GA24-500-B01SP
Price:
$30.90 USD

Dielectric antenna specification
Center frequency: 1575.42mhz+/-2 MHZ
V. S. W. R: <1.5
Band width: Band width

Attenuation fo: +/-100mhz>30db

Impendence: 50 ohm

Peak gain: >3dbic based on 7*7cm ground plane

Gain coverage: >-4dbic at -90<0<+90(over 75% volume)

Polarization: rhcp
Lna specification
Lna gain(without cable): 28dB,35dB,45dBtypical
Noise figure: 1.5db
Dc voltage: 3-5V
Dc current: 20MA max
Mechanical specification
Weight: < 400g
Cable: Coax cable RG58
Cable Length: 5 meter ,(Optional 10meter ,contact us firstly)
Connector: BNC male straight , SMA/SMB/SMC/TNC/FME/MCX /MMCX /Fakra/AVIC/WICLIC in straight or right angle please give us some notes if the antenna connector is chosen.Tks!
Mounting base: Screw
Environmental specification
Working temp: -40~+85
Storage temp: -40~+100
Vibration sine sweep: 1g(0-p)10~50~10hz each axis
Humidity: 95%~100%rh
Weatherproof: 100%
